Structural Drafting for Southeast Texas Projects

Our structural design coordination page describes how we manage the people and the back-and-forth between your design team and your engineer. This page is about the output: the actual structural sheets that go into your permit set. Drafting is the craft of taking loads, member sizes, and connection requirements and laying them out so there is only one way to read them.

Every structural sheet we draft is built in Revit alongside the architectural model. When a wall moves or a window grows, the grid lines, bearing walls, and beam callouts move with it, so the structural sheets never quietly fall out of step with the floor plan. That shared model is the reason our drafting stays consistent through revisions instead of being patched one sheet at a time.

Much of Southeast Texas sits on clay soils that swell when wet and shrink when dry, and many lots have a high water table or flood zone considerations. That is why the foundation plan deserves careful drafting. When a project calls for a geotechnical report, we coordinate it with a licensed geotechnical engineer, and the structural engineer uses that report to design the foundation.

Once the engineer sets the design, we draft it: slab outline and dimensions, grade beam layout, thickened edges, interior beams under bearing walls, slab steps and depressions for showers or roll-in doors, and the locations of anchor bolts, hold-downs, and embedded plates. Plumbing blockouts and sleeves are coordinated with the plumbing drafting so nothing is guessed at the pour.

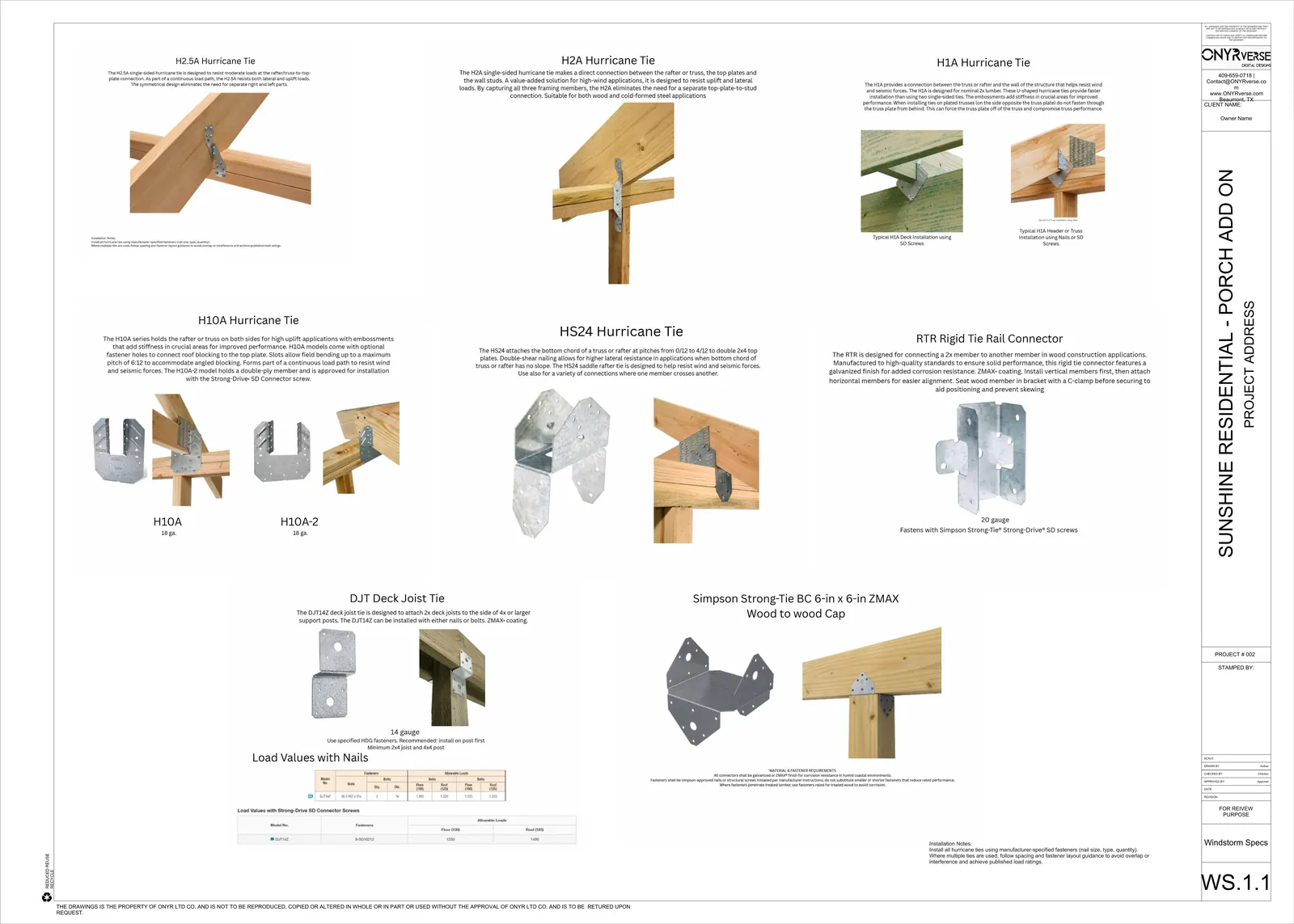

Framing plans show every joist, rafter, truss, beam, and header the engineer has specified, drawn at a scale a framer can read on a tailgate. We label spans and directions, tag each beam and header to a schedule, show point loads carried down to the foundation, and mark where engineered lumber or steel replaces conventional framing.

For barndominiums, shop houses, and other wide clear span buildings, framing plans often include steel frames, purlins, and girts, or long span trusses supplied by a manufacturer. We draft the layout the engineer approves and reference the truss or metal building supplier's drawings so the set tells the builder which document governs which part of the structure.

Clarity about roles protects the owner. The licensed structural engineer designs the structure, runs the calculations, and seals the drawings when a seal is required. ONYRverse prepares the drafting from that design, keeps it aligned with the architecture, and turns engineer markups into clean revised sheets. We do not perform structural calculations, size members on our own, or stamp anything.

We work with partner firms including Innodez and Aaron & Franklin, and we are happy to draft for an engineer you already have a relationship with. Either way, you get one drafting team that speaks the engineer's language and one consistent set. Industry research shows that most of a project's cost is committed during design, so getting the structure drawn right before construction is one of the best places to protect your budget.
